Pump specifications
- Model
- LS-400
- Pumping rate
- Up to 40 cu. yds. per hour*
- Pumping method
- Reciprocating piston
- Maximum aggregate size
- 38mm
- Vertical pumping height
- Up to excess of 76m
- Piston face pressure
- 1150 psi
- Horizontal pumping distance
- 305m *
- Cylinder lubrication box capacity
- 7.6 litres
- Hydraulic fluid capacity
- 189 litres
- Fuel tank capacity
- 76 litres
- Hopper capacity
- 10 cu. ft. with optional fwd/rev remixer
- Material hose
- 76.2mm, 101.6mm, 127mm dia.
- Engine model
- Deutz Diesel F4L2011
- Weight (with fluids)
- 2,159kg
- Weight (dry)
- 2,068kg
- Tyre size
- 187mm x 356mm
- Options
- Wireless remote control, hopper screen vibrator, hydraulic rear stabiliser
* Volume output will vary depending on mix design, slump, line size used and job site conditions
Engine specifications
- Model
- Deutz Diesel F4L2011
- Type
- 4 stroke, air-cooled diesel
- No. of cylinders
- 4
- Bore x stroke
- 106mm x 127mm
- Rated output
- 60 HP @ 3,000 RPM
- Displacement
- 2.73 litres
- Starting
- Electric 12 VDC
- Lube oil capacity
- 2.5 litres
- Fuel type
- #2 Diesel fuel
- Battery
- 12V DCV Group 27

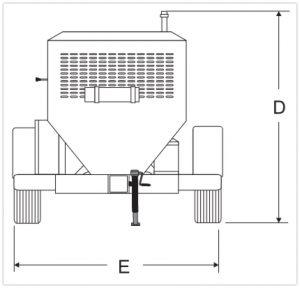

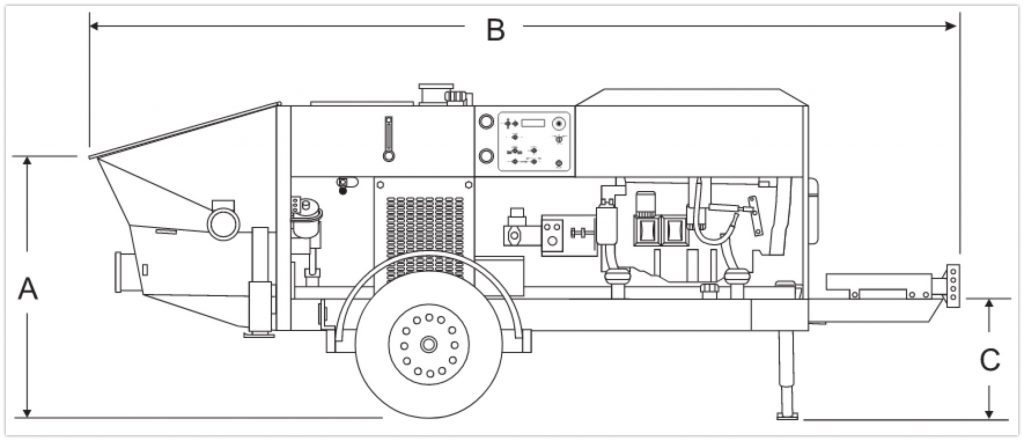

Dimensions
- A
- 109.2cm
- B
- 437cm
- C
- 61cm
- D
- 177.8cm
- E
- 172.2cm
