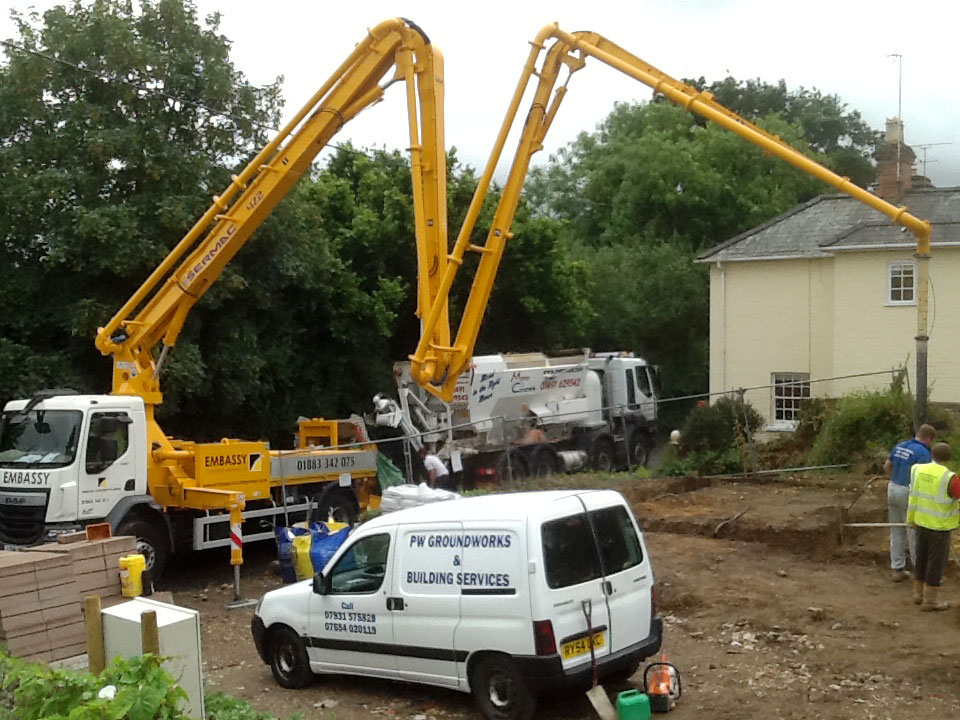

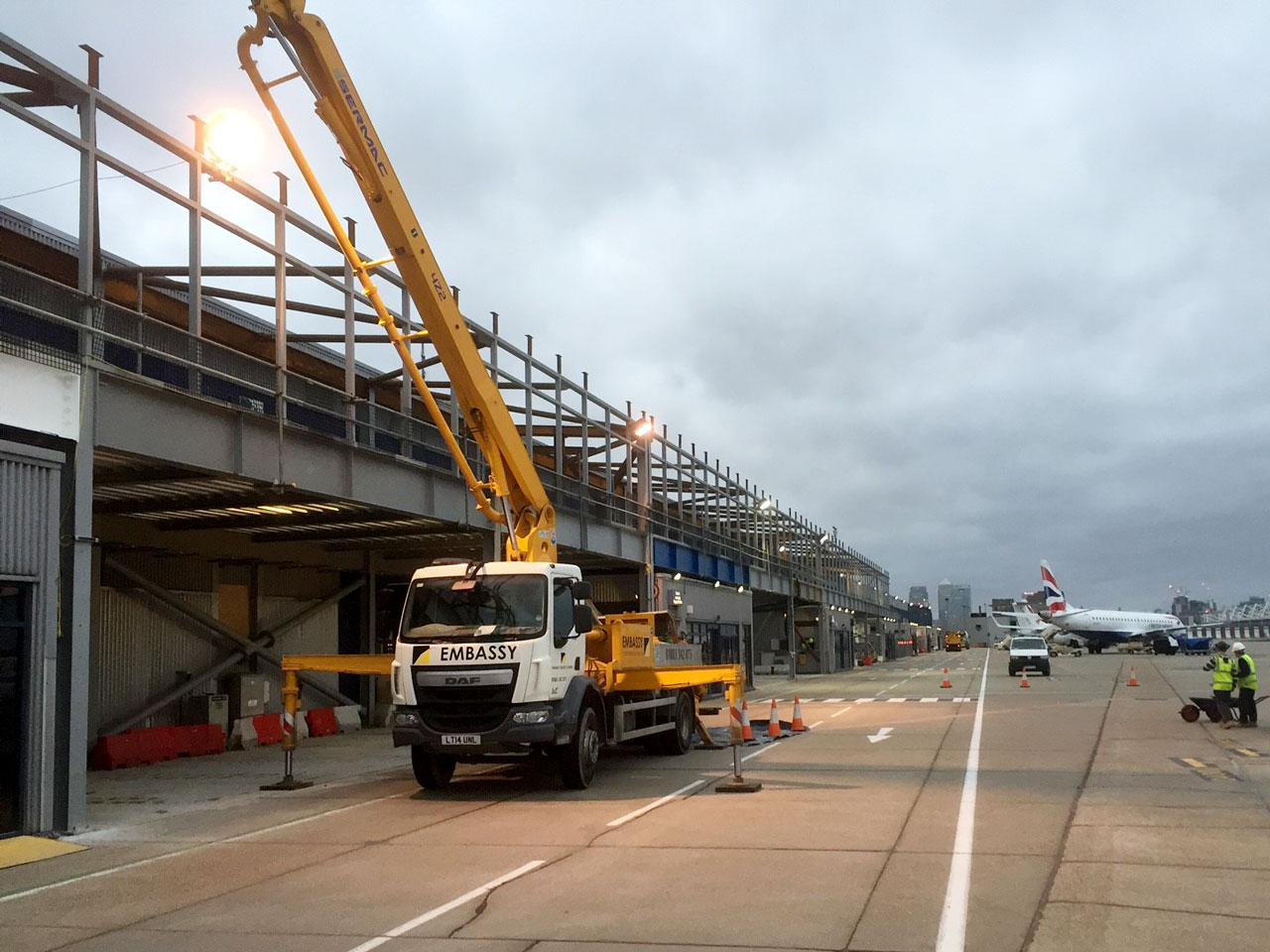

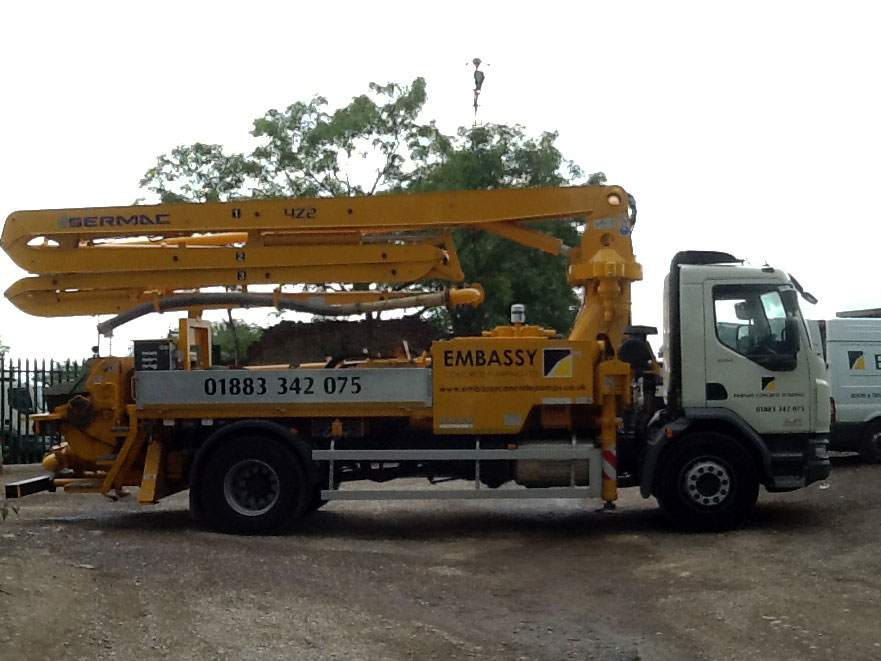

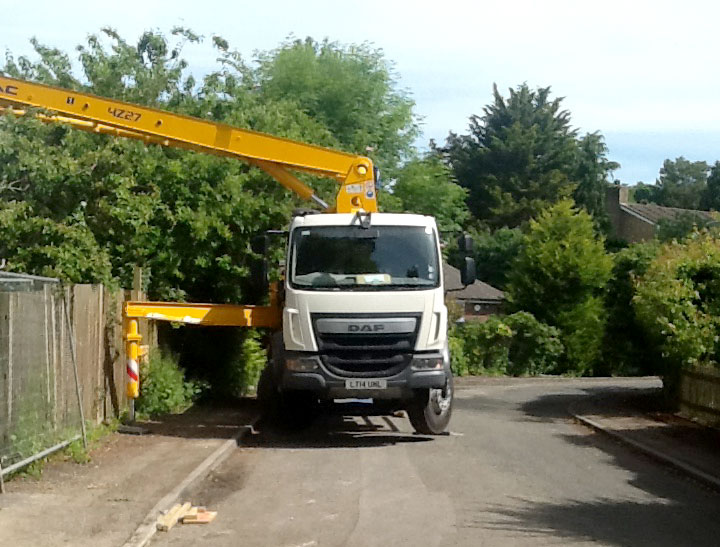

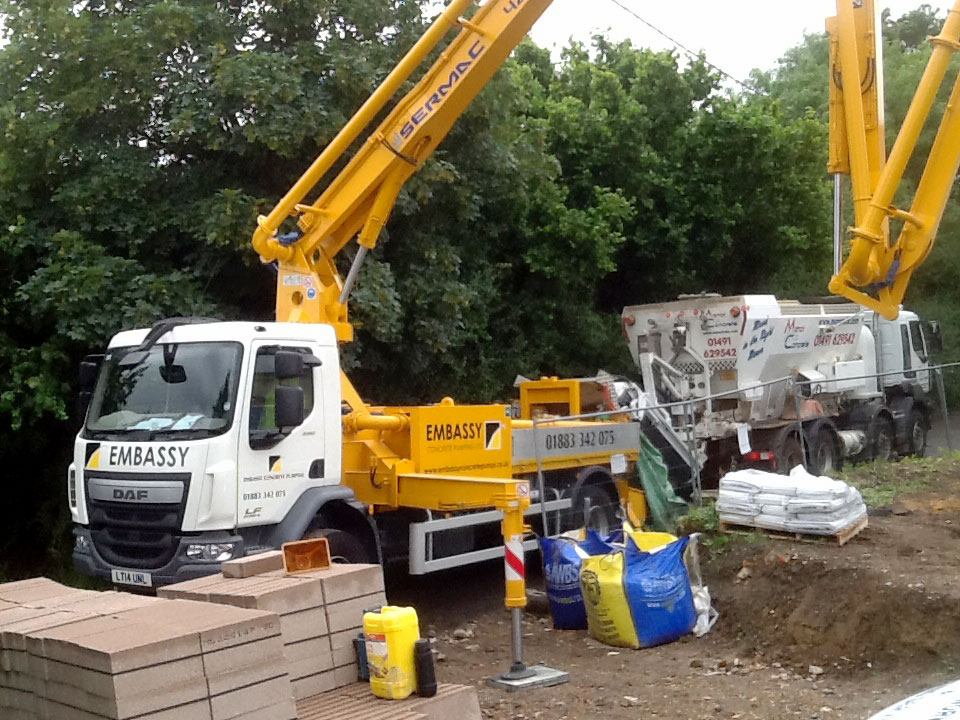

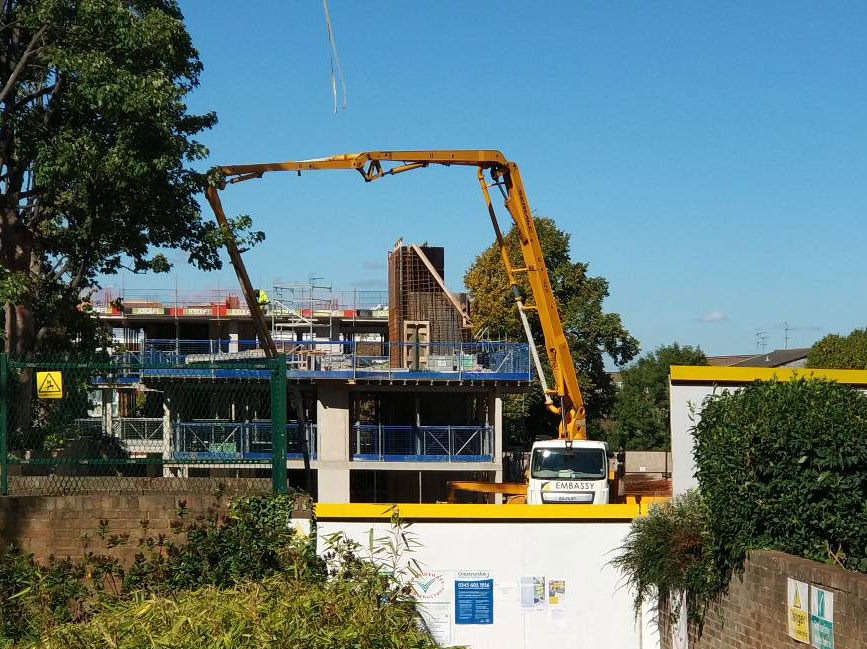

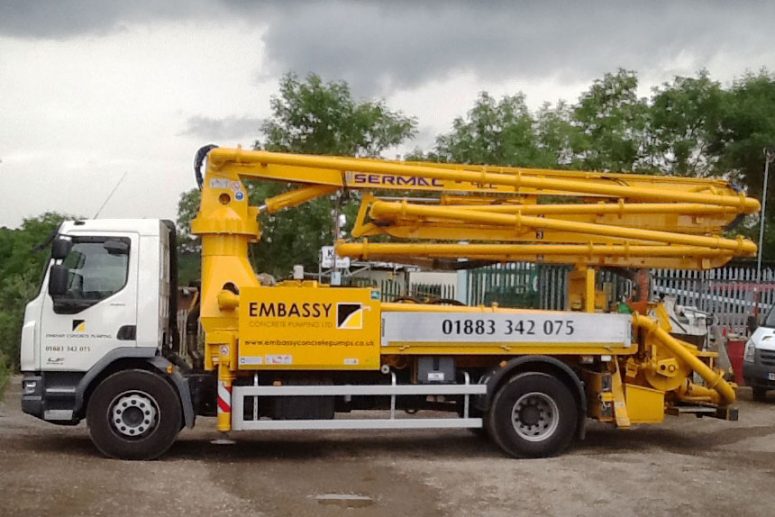

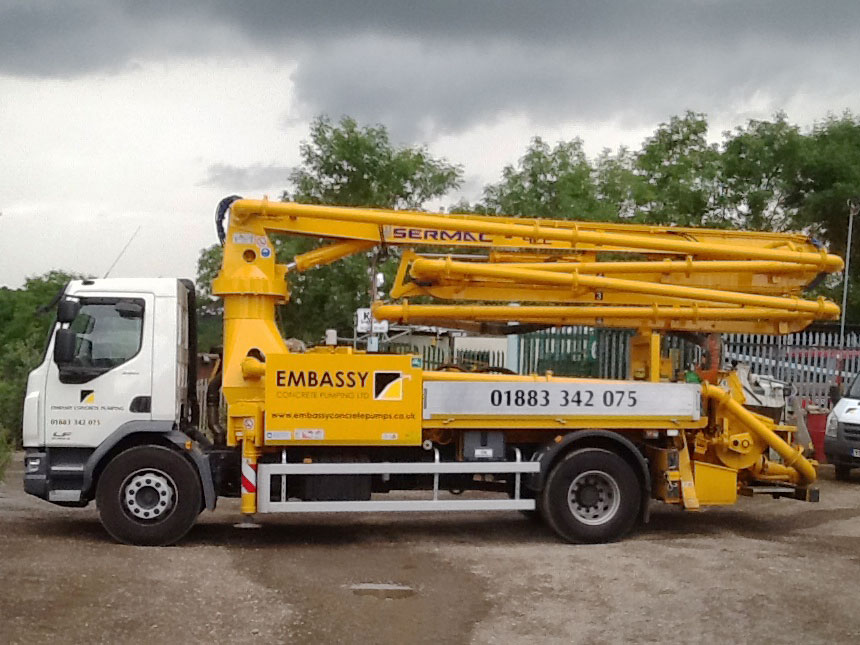

The Sermac Z27 is a 4-section Z-fold concrete boom pump — capable of pumping 130m of concrete per hour.
The Z27 is a handy mid-range pump with back legs deploying straight down rather than laterally.
- 4 section
- Proportional Radio remote

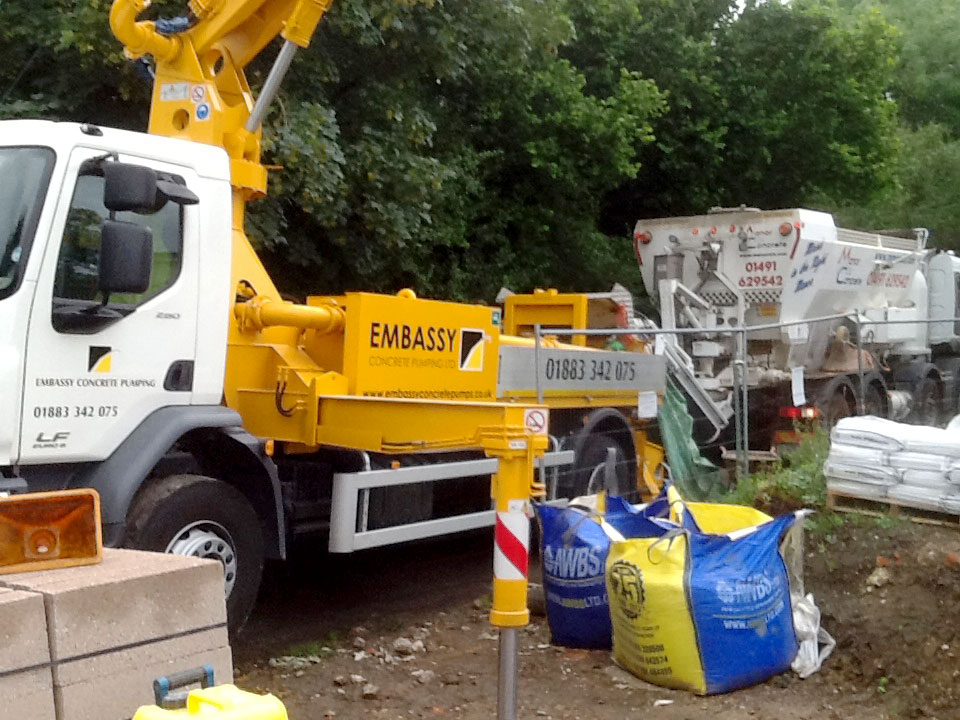

- Straight-down deployment of back legs
Boom specifications
- Model
- 4Z27
- Number of Sections
- 4
- Folding Type
- Z

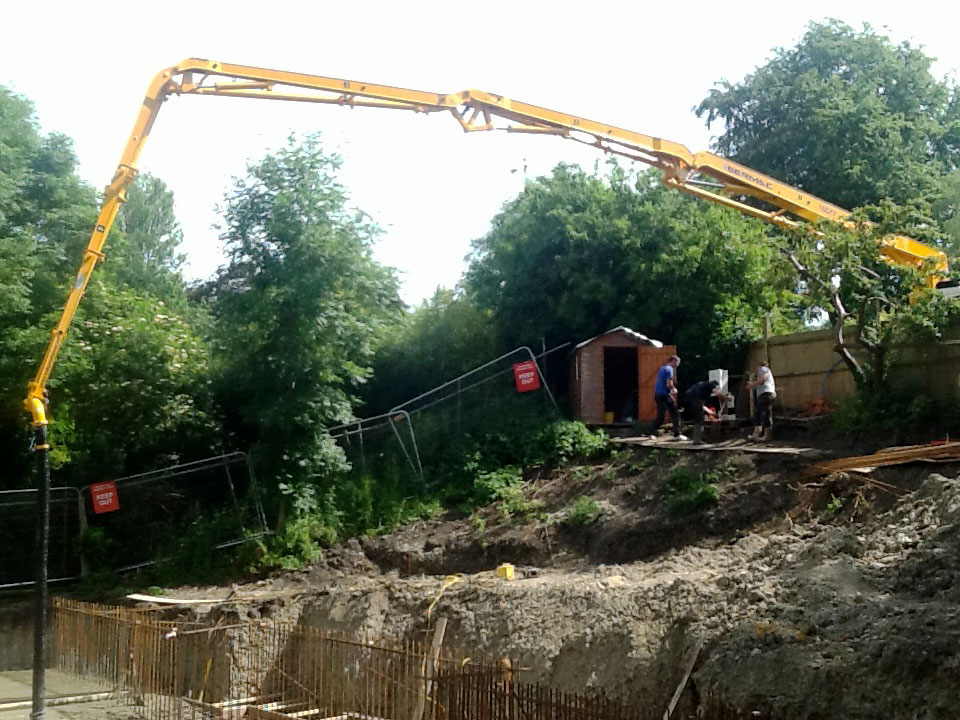

- Max Vertical Reach
- 26.4m
- Max Horizontal Reach
- 22.4m
- Max Downward Reach
- -16.4m
- Unfolding Height
- 6.0m
- Rotation
- 370°
- Section Articulation
- 90° – 180°
- 255° – 260°
- Concrete Pipeline
- Ø 125mm
Dimensions
